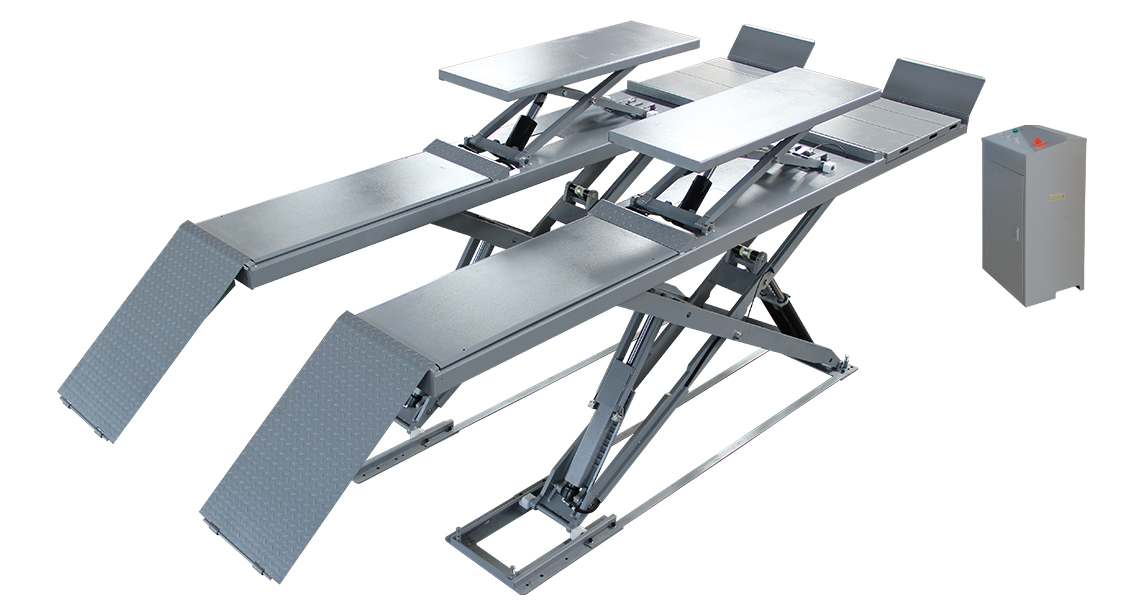

low-profile wheel alignment scissor lift

Download: PDF



Model name TF-TSL4000B-M
Lifting capacity 4000 kg
Max. lifting height 1850 mm
Min. lifting height 200 mm
Lifting capacity of bridge jack 2000 kg
Lifting height of bridge jack 450 mm
Platform length 4500 mm
Width of single runway 600 mm
Unlocking system pneumatic unlocking system
Working voltage 110V/220V/380V

1. high quality electric-hydraulic pump, DC 24V operation voltage, safe, powerful, and low failure rate;

2. double-scissor design allows twice lifting, smarter and more convenient;

3. pneumatic locking system allows slow descent in case of emergency;

4. double-cylinder design makes the lift safe, fast and steady;

5. design of removable board and sliding plate allows the lift to work as wheel-alignment lift;

6. ISO 9001: 2015 and CE certificated;

Note: Due to product improvements design, specifications are subject to change without notice.
